Laser cutting robot ROBOCUT A 1000

  • Laser cutting robots from 100 to 1000 W
  • Three-axis scanner for 2.5D processing
  • Large working area and very high precision

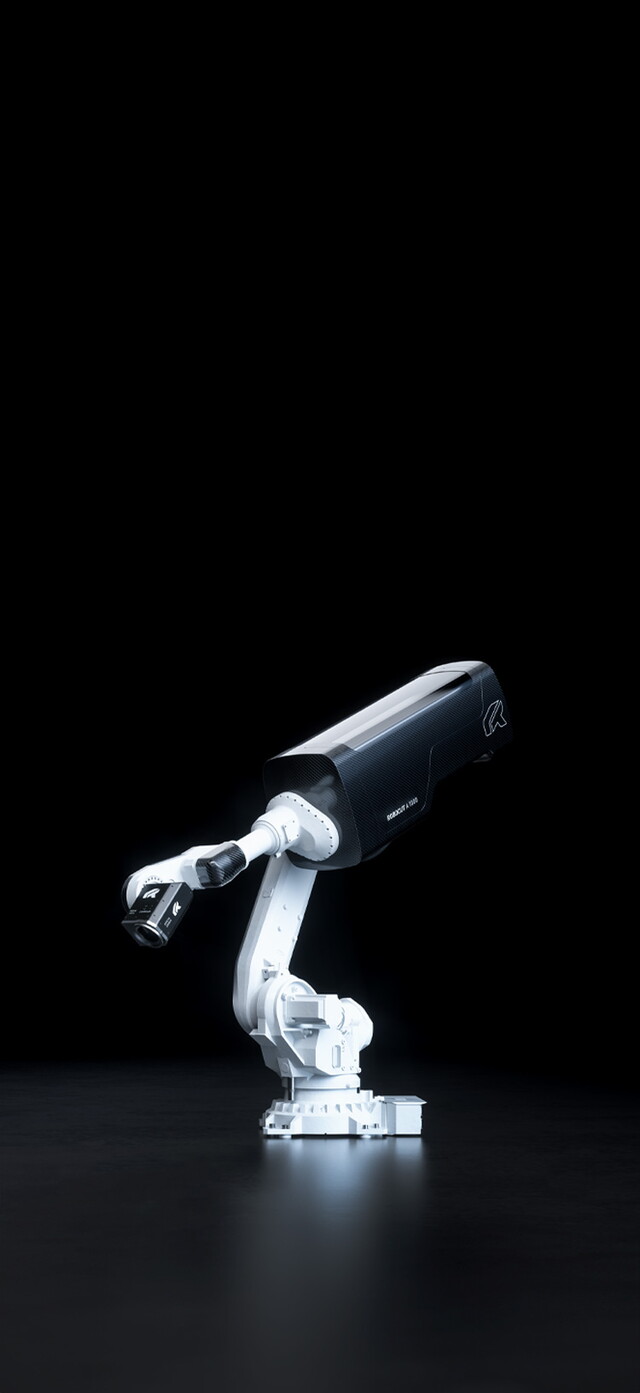

ROBOCUT A 1000 The powerhouse

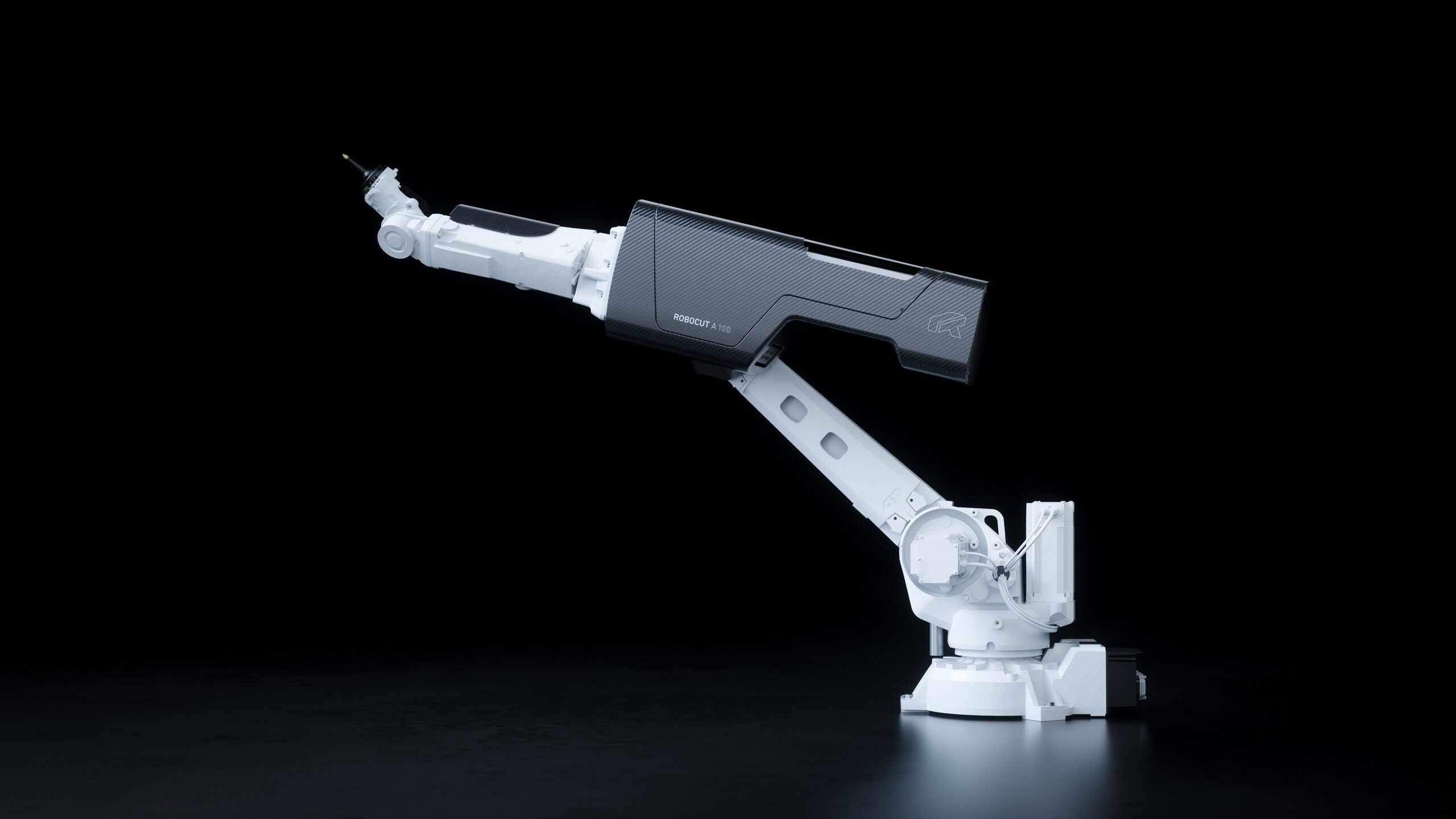

The ROBOCUT A 1000 laser cutting robot is a more powerful type of the ROBOCUT A 100 and is suitable for applications that require a higher laser power of up to 1000 W or a larger processing area.

Laser powers from 100 - 1000 W and various nozzle and scanner types are available to adapt to specific requirements. The tried-and-true technology of embedding the laser in a housing as an integral component of the kinematics is also provided here. An ultra-light housing made of carbon is the connecting link between axis 2 and 4 and contains the laser source. The integration of a 3-axis scanner enables dynamic modification of the focal point, making it an absolute high-tech machine.

ROBOCUT A 1000
Brief overview

Laser scanner
  • Three-axis RAYLASE scanner for 2.5D processing
  • Processing area of ​​up to 600 x 600 mm
  • Processing accuracy of +/- 0.05 mm
Laser
  • Robust CO₂ laser with runtimes of more than 15,000 hours
  • 100 - 1000 W laser power
  • Integrated directly into the robot
Housing made of carbon
  • Connecting element between axles 2 and 4
  • Ultra-light and extremely stable
  • Integrated laser receptacle
Basic robot
  • Standard ABB IRB 6700
  • Including RobotStudio model

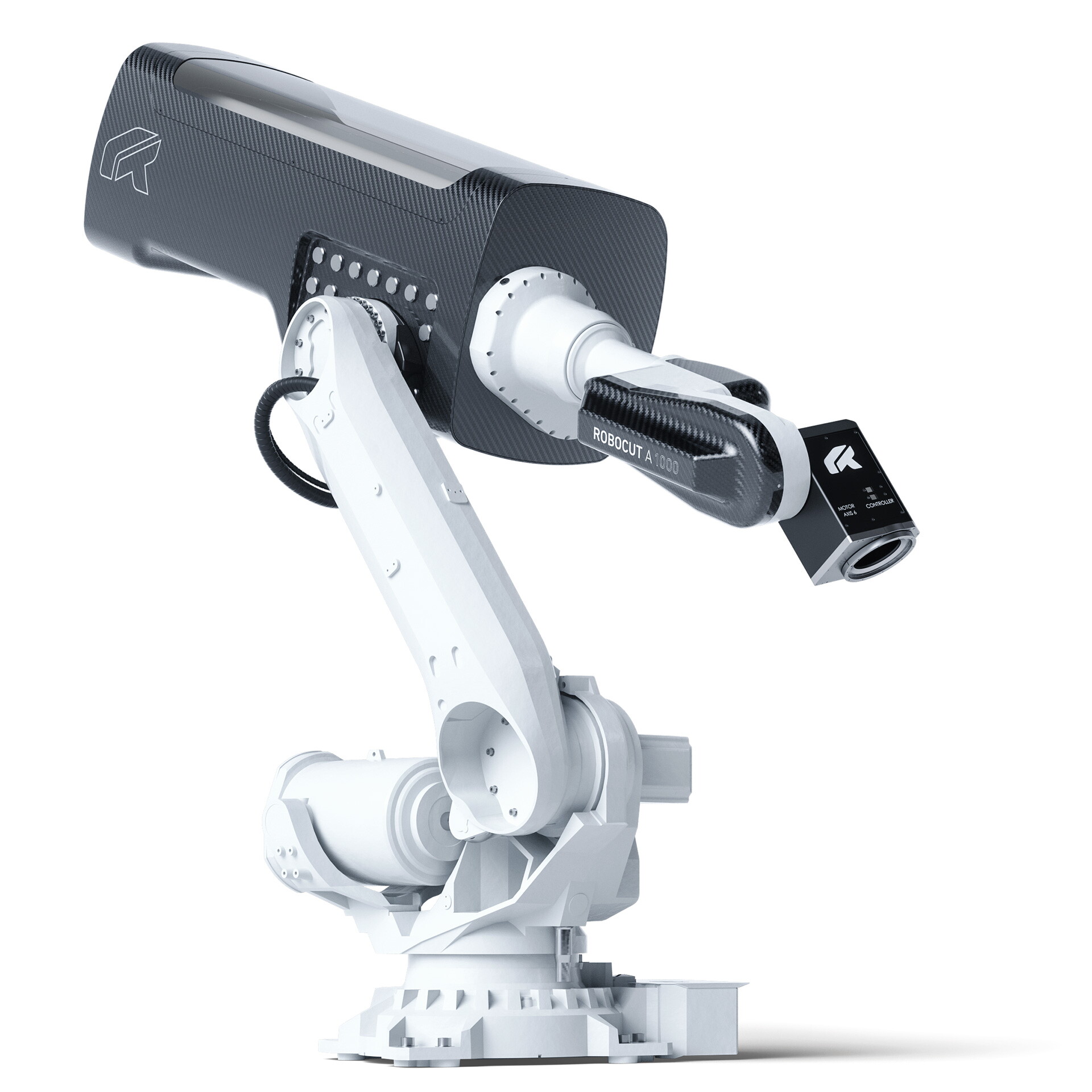

Basic robot ABB IRB 6700

The 6-axis laser robot is based on the ABB IRB 6700 robot and is programmed using the standard ABB programming language RAPID. This means that all known standard ABB options are available.

  • Standard ABB components
  • RAPID programming
  • RobotStudio model

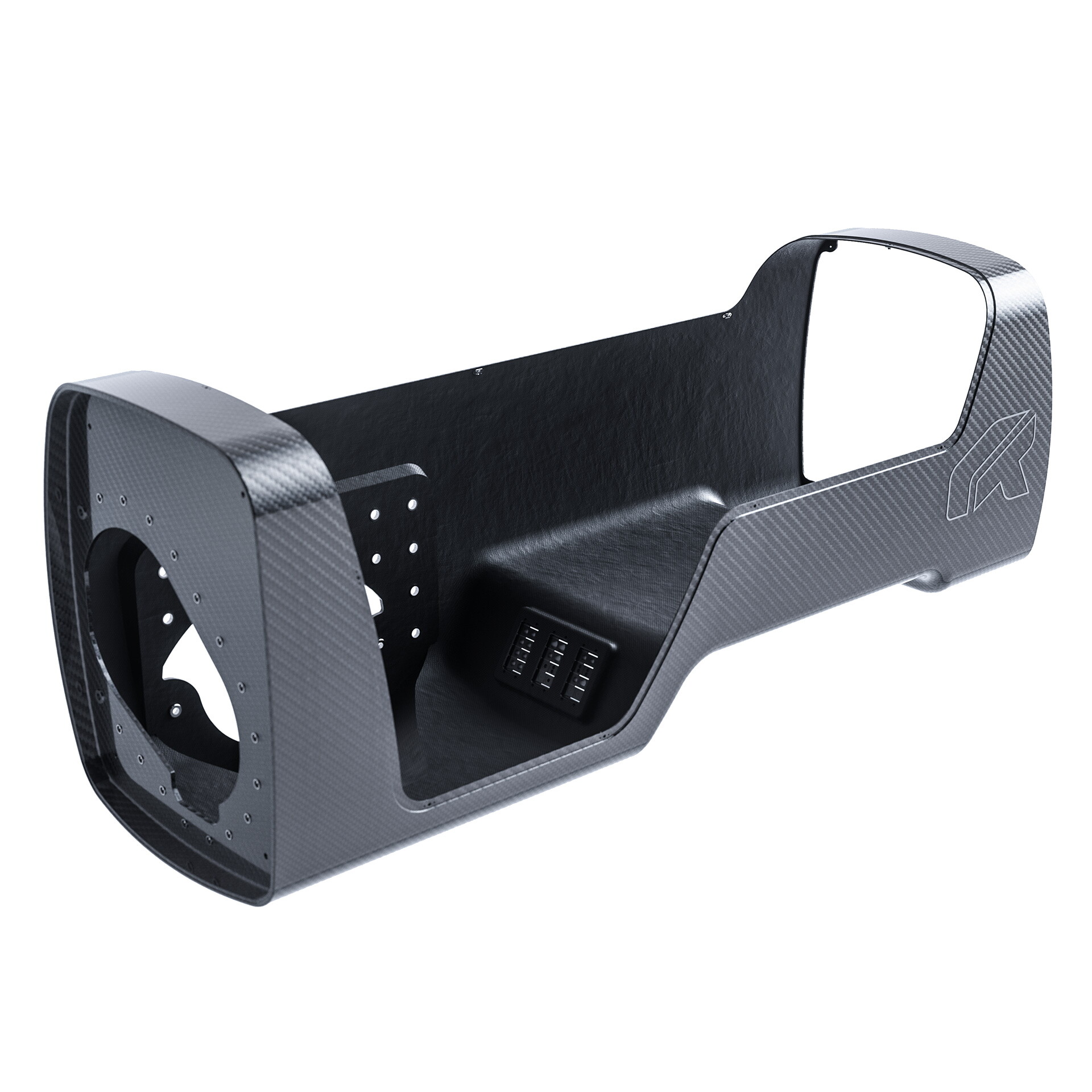

Ultra-light housing made of carbon

The extremely lightweight housing made of carbon integrates the CO₂ laser and the RF power supply. The robot's low weight and great stability allow it to continue performing laser cutting jobs with precision and flexibility.

  • Low weight
  • High stability
  • Dynamic motions

ROBOCUT A 1000
Laser types

1000 W
1000 W
600 W
300 W
100 W

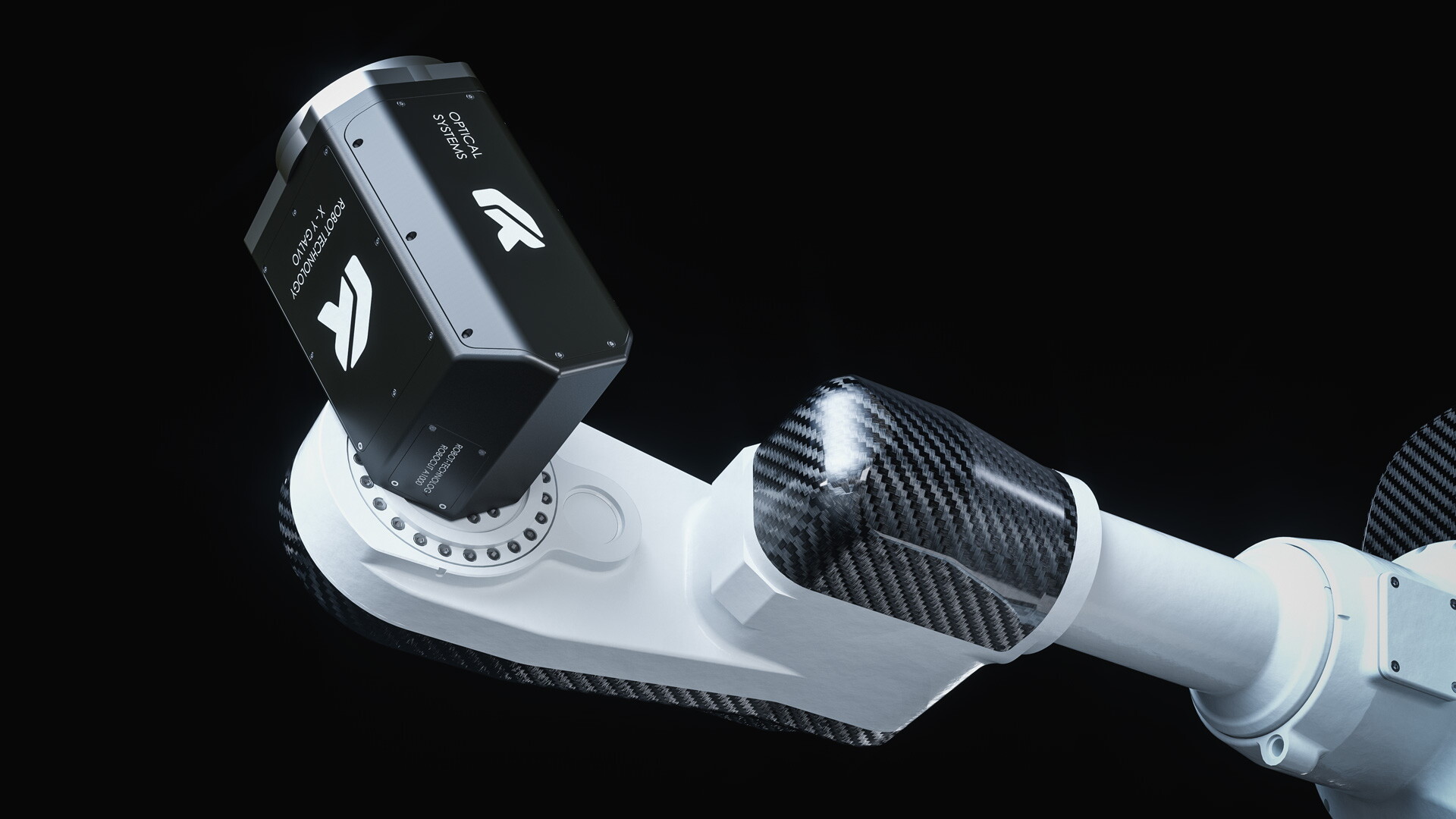

ROBOCUT A 1000 3-axis scanner unit

The ROBOCUT A 1000 is equipped with a RAYLASE 3-axis scanner unit. The focus location can be precisely adjusted using a linearly adjustable axis on which the focusing components are placed. This not only allows for a larger scanning field, but it also enables three-dimensional object processing without the need for the robot to move.
