Laser cutting robot ROBOCUT A 100

  • very high precision
  • the perfect symbiosis of laser and robot
  • large working area

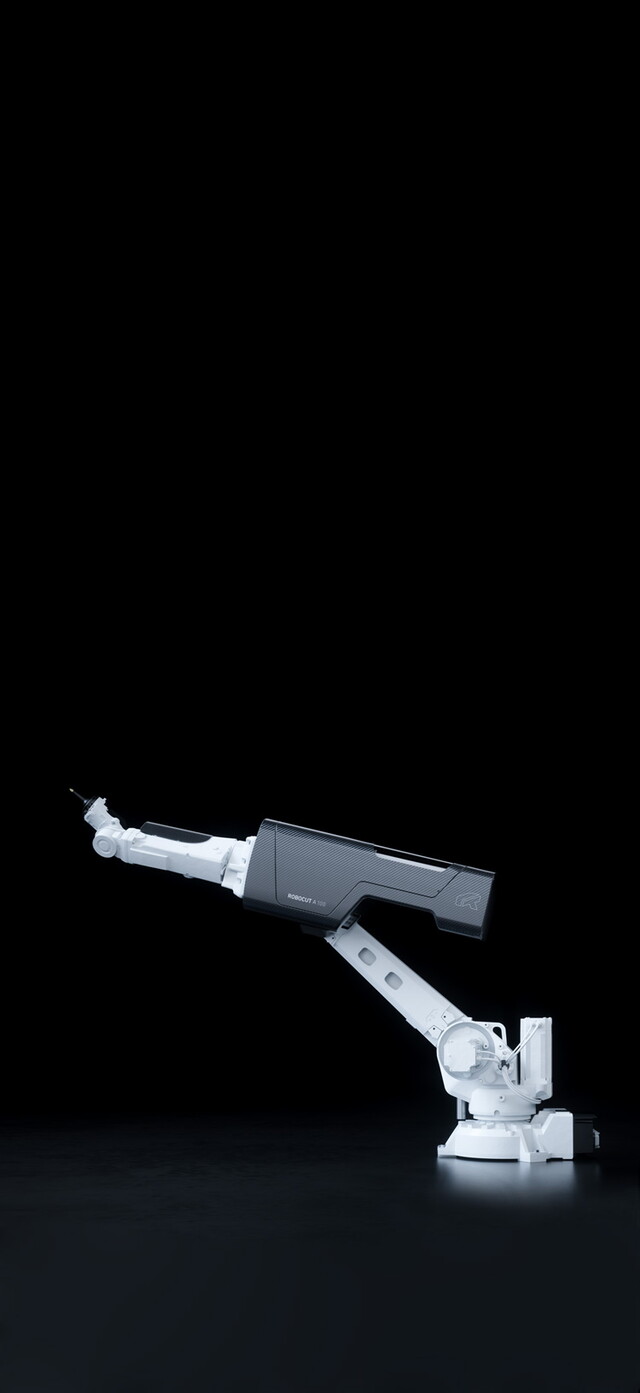

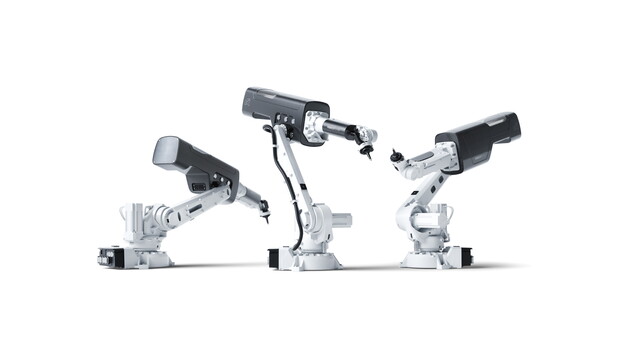

ROBOCUT A 100 The agile one

The patented laser cutting robot ROBOCUT A 100 is the perfect symbiosis of laser and robot and is the optimal tool for processing plastic parts.


Laser powers of 100 - 300 W and various nozzle and scanner variants are available to adapt to specific requirements. The tried-and-true technology of embedding the laser in a housing as an integral component of the kinematics is also provided here. An ultra-light housing made of carbon is the connecting link between axis 2 and 4 and contains the laser source. A large working area, speed, variation possibilities and very high precision characterise the laser cutting robot and make it an absolute high-tech machine.

Basic robot ABB IRB 2600

The 6-axis laser robot is based on the ABB IRB 2600 robot and is programmed using the standard ABB programming language RAPID. This means that all known standard ABB options are available.

  • Standard ABB components
  • RAPID programming
  • RobotStudio model

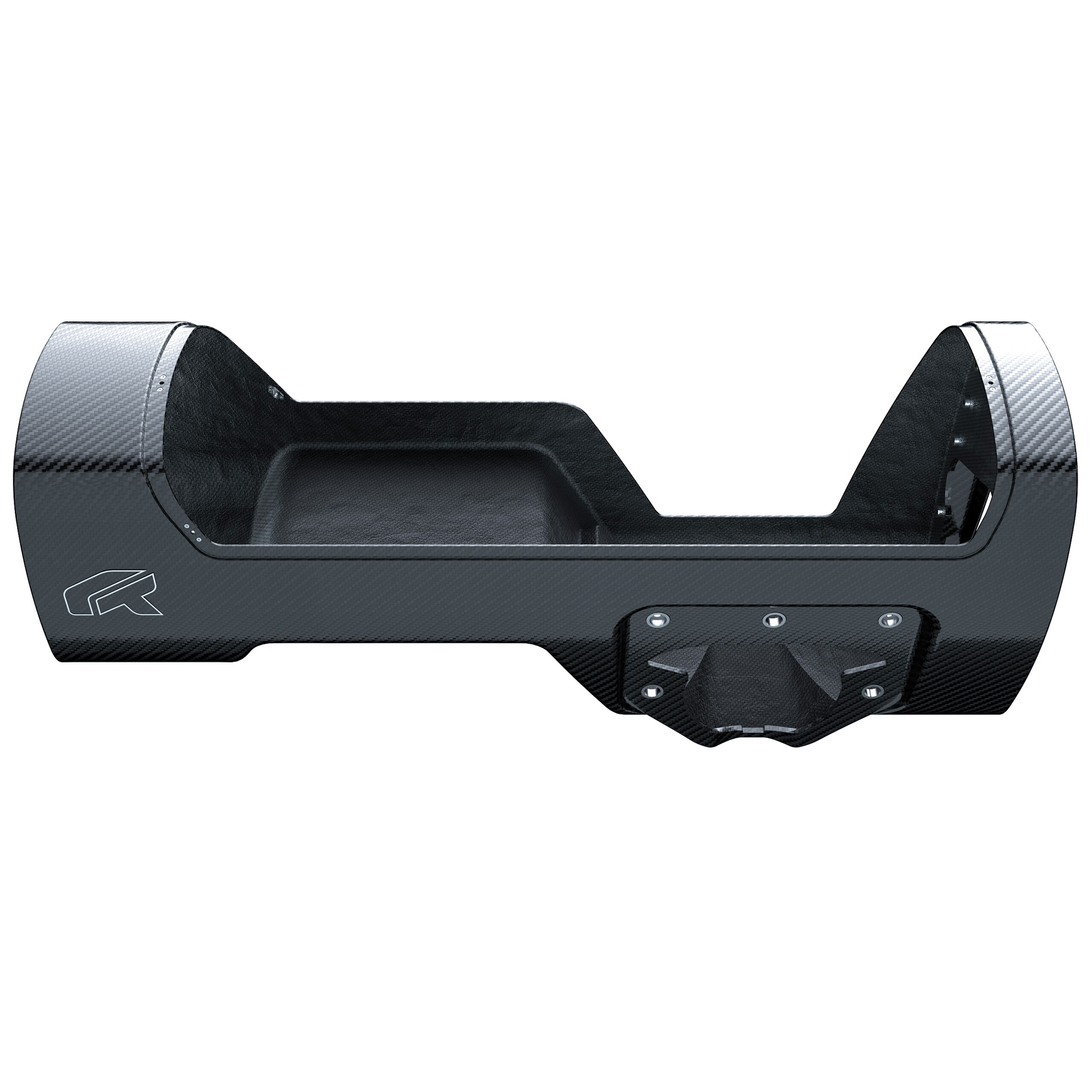

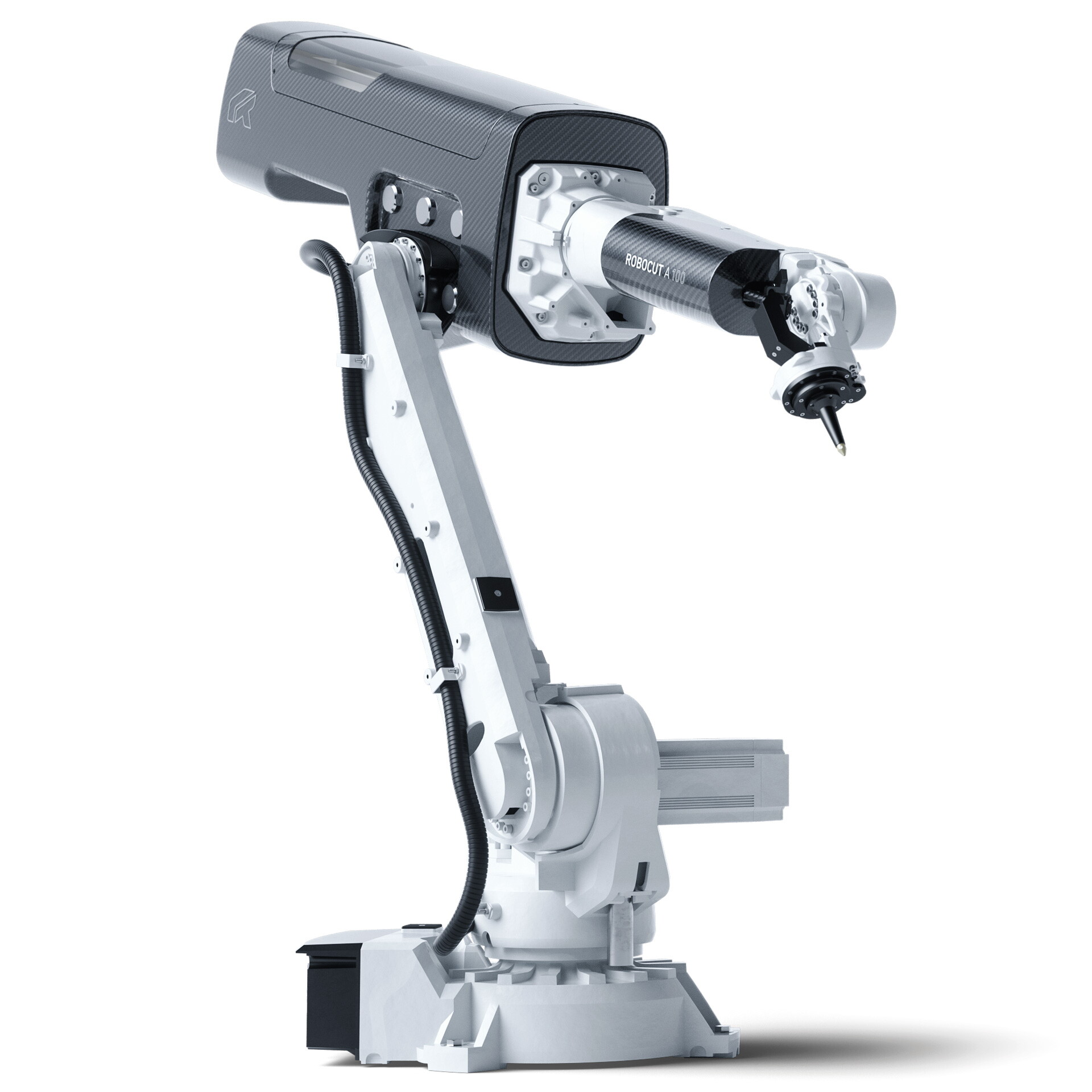

Ultra-light housing made of carbon

The extremely lightweight housing made of carbon integrates the CO₂ laser and the RF power supply. The robot's low weight and high stability allow it to conduct laser cutting jobs precisely and flexibly

  • Low weight
  • High stability
  • Elegant design

ROBOCUT A 100
laser

The ROBOCUT A 100 laser robot can be equipped with CO₂ lasers from 100 to 300 W. The laser's direct integration into the robot allows for excellent part accessibility and significantly reduces cycle times in many applications.

  • 100 - 300 W CO₂ laser
  • Excellent part accessibility
  • Easy maintenance

ROBOCUT A 100Full flexibility with our interchangeable nozzles

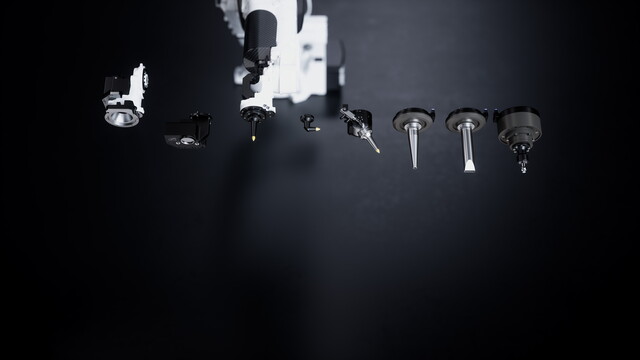

ROBOCUT A 100 Nozzle variants

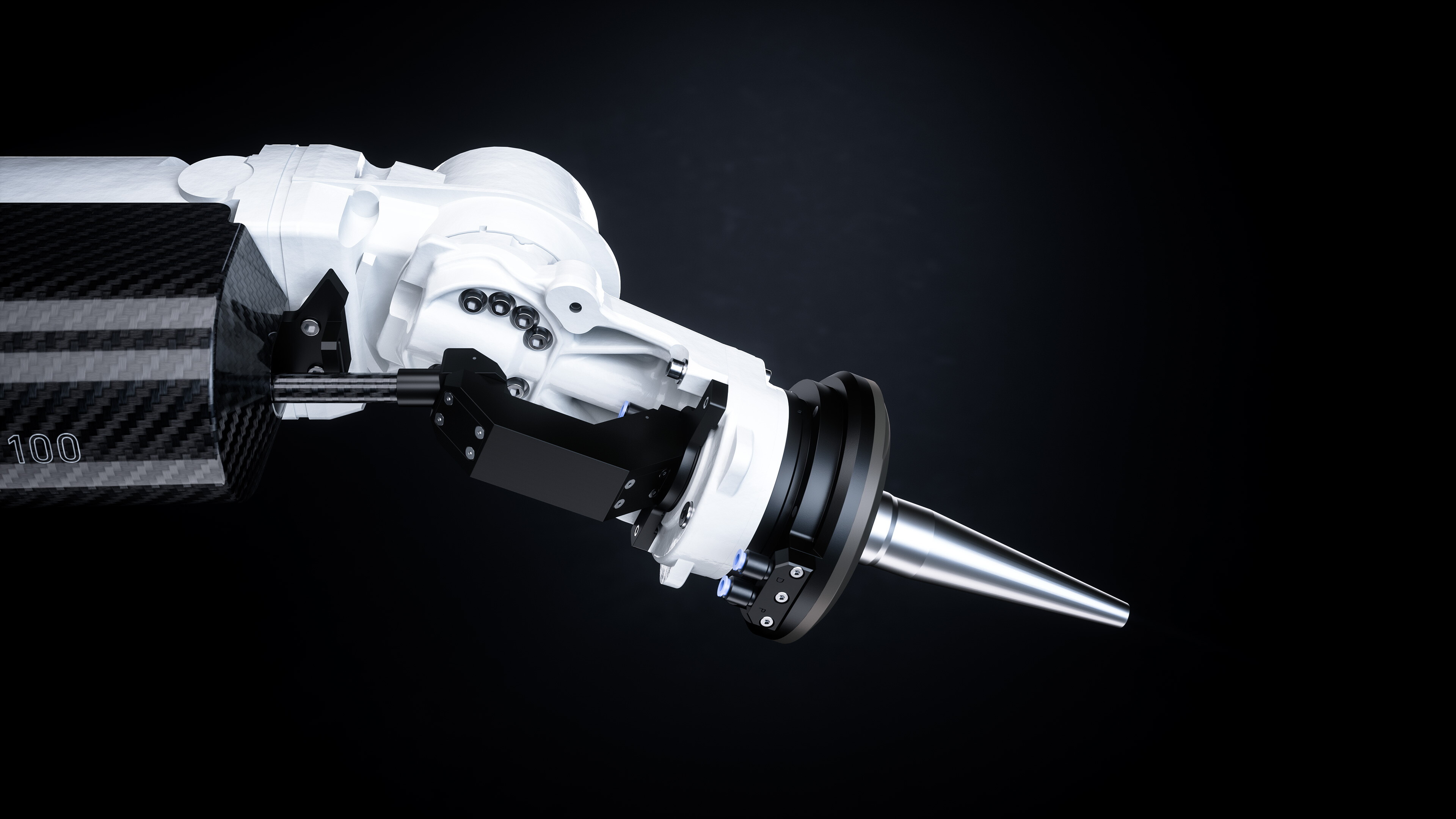

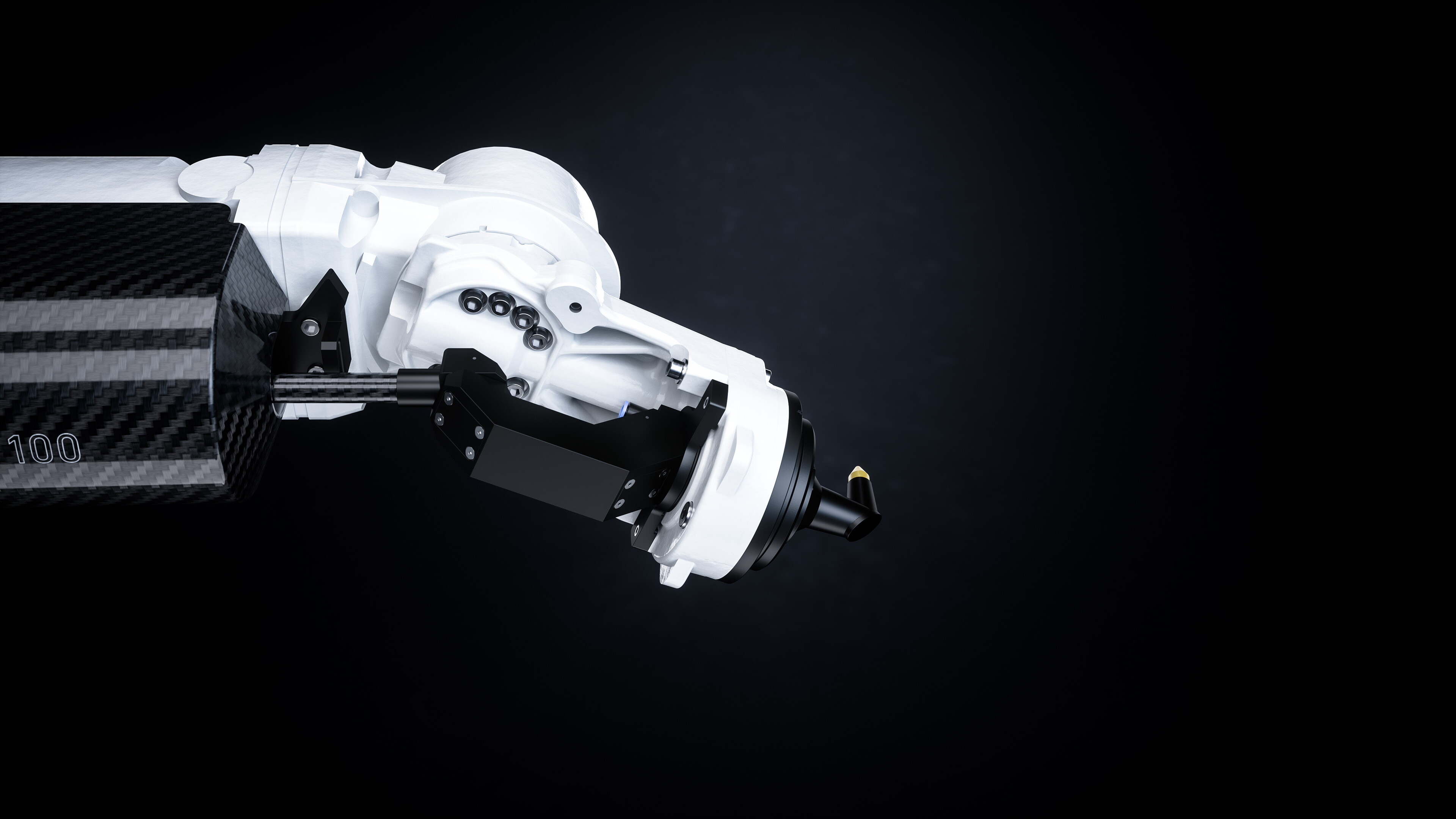

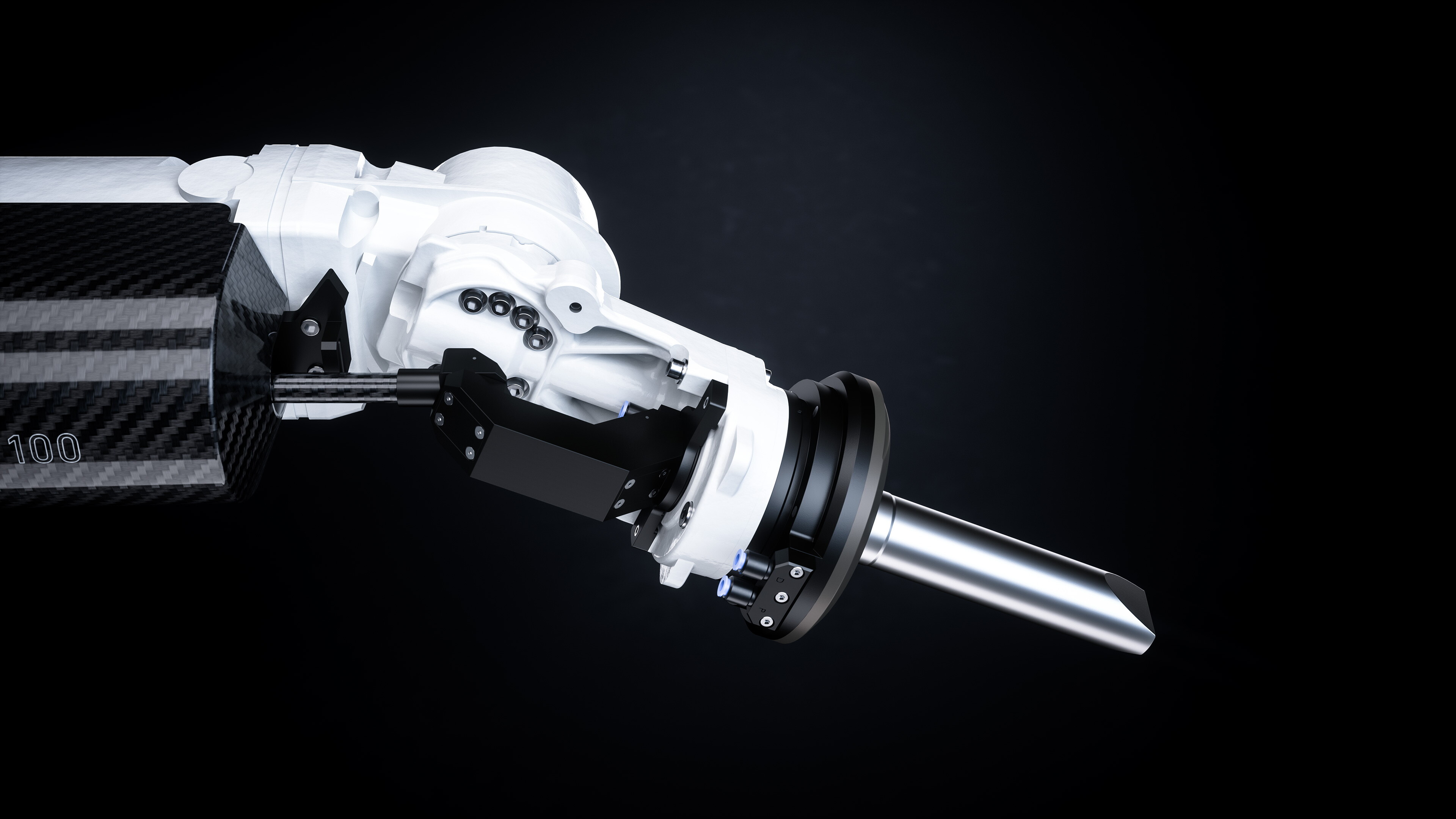

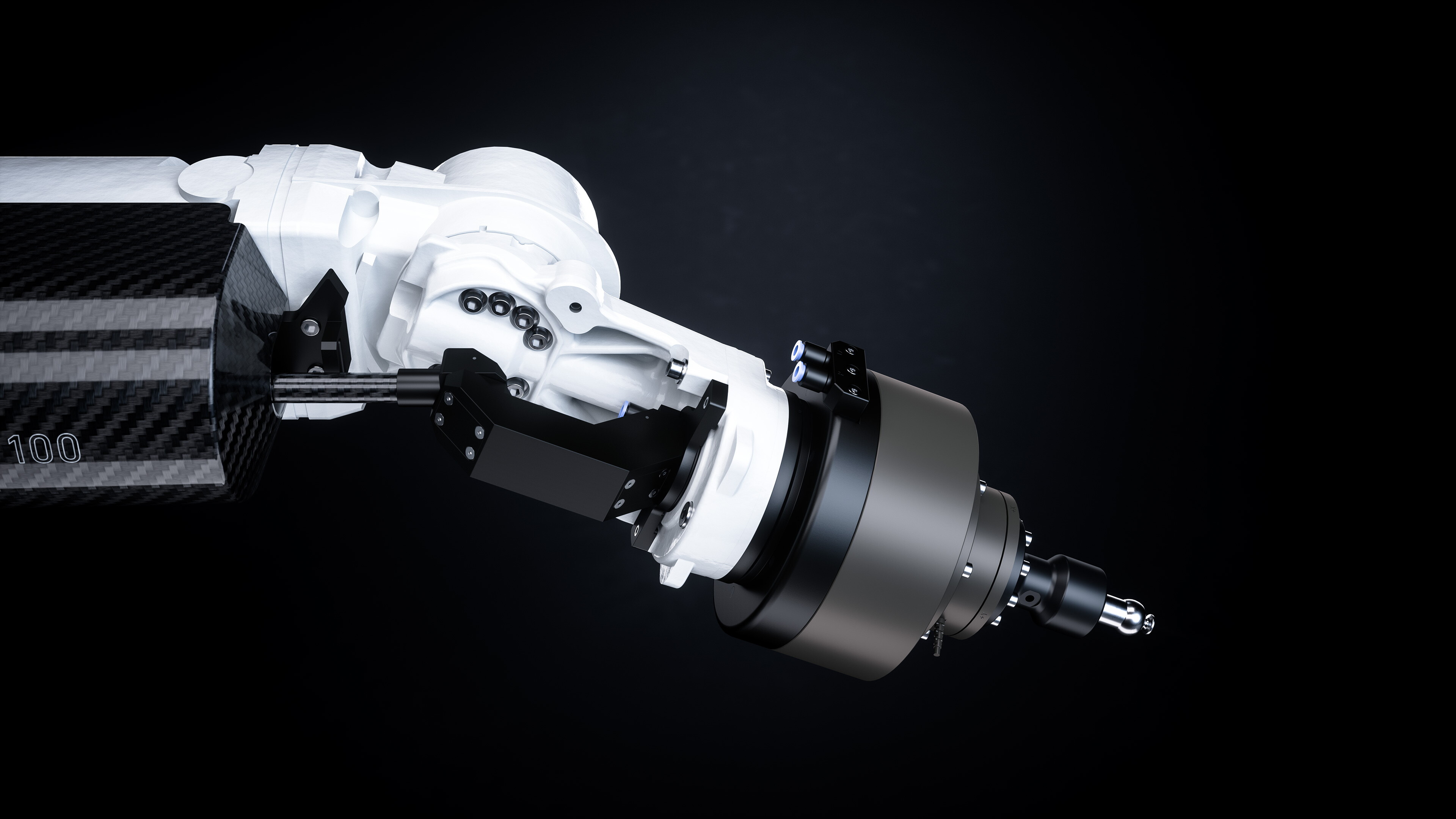

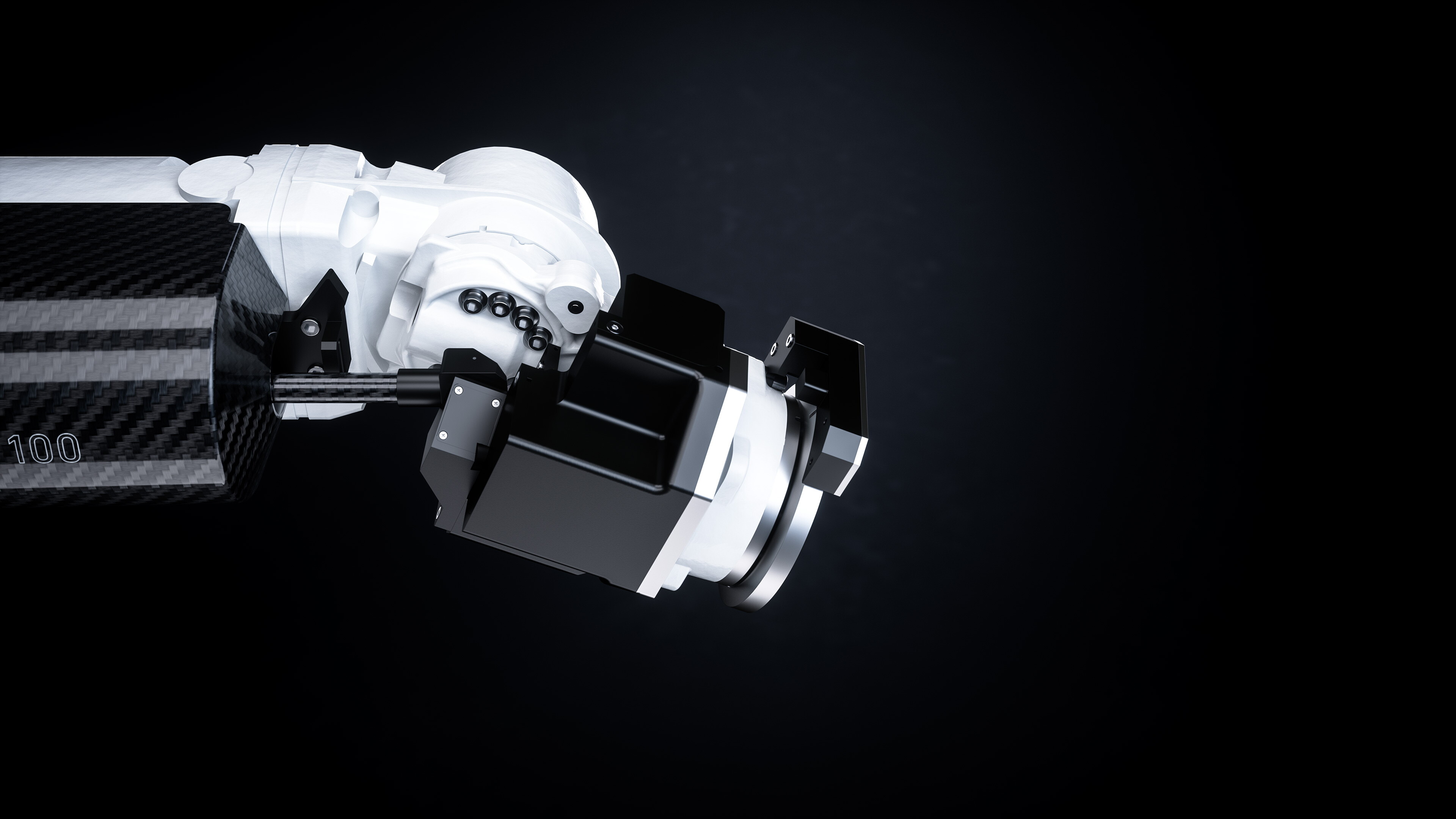

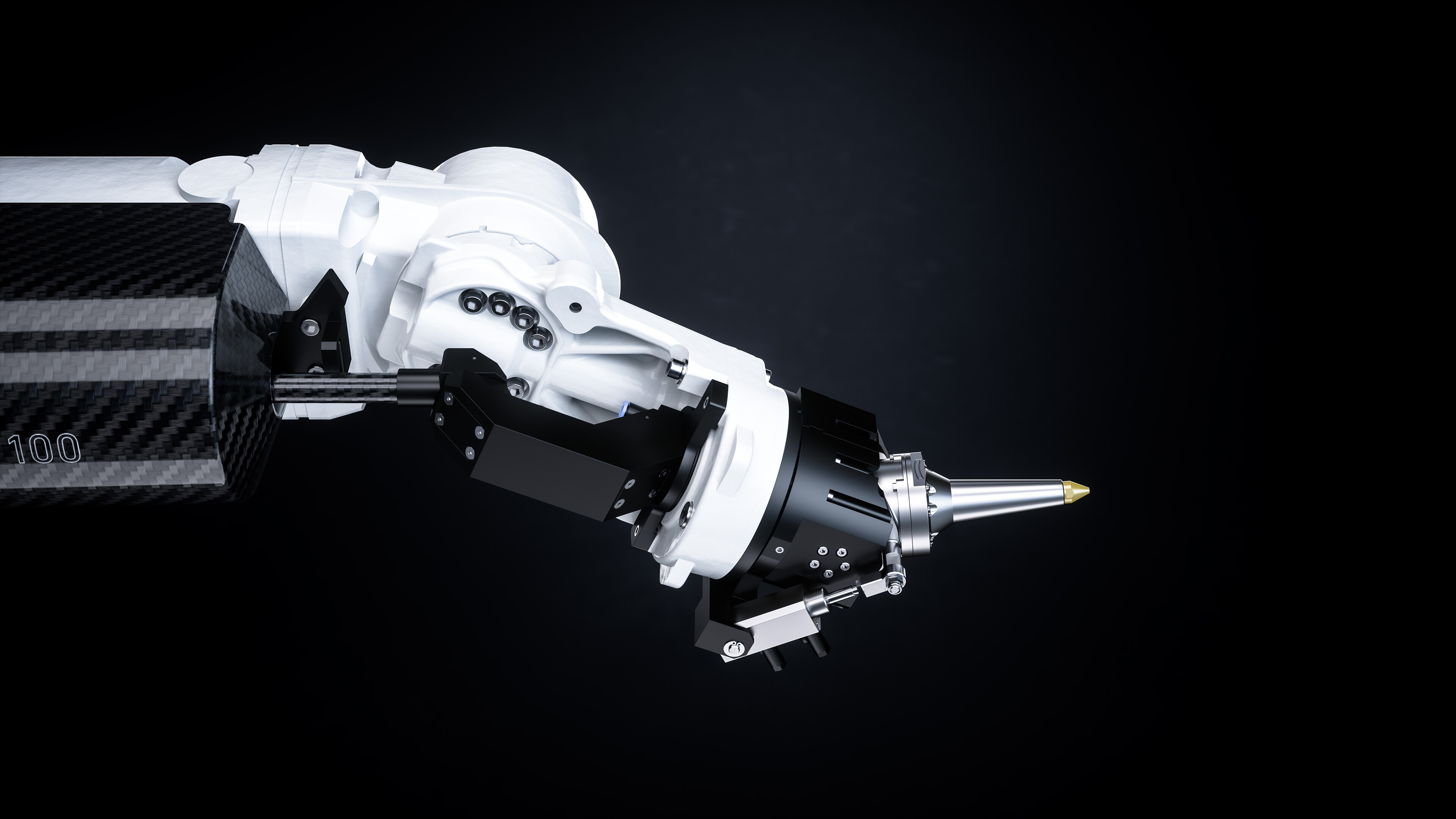

Depending on the cutting task and part geometry, different cutting head variants are required. Factors such as cycle time, cutting accuracy, part accessibility and part size play a decisive role. To maximize flexibility, the ROBOCUT A 100 can be outfitted with a variety of cutting heads, including scanners, straight nozzles, angle nozzles, and roller nozzles.

For maximum efficiency, an automatic changeover system is available on request, allowing quick and seamless switching between nozzles.
